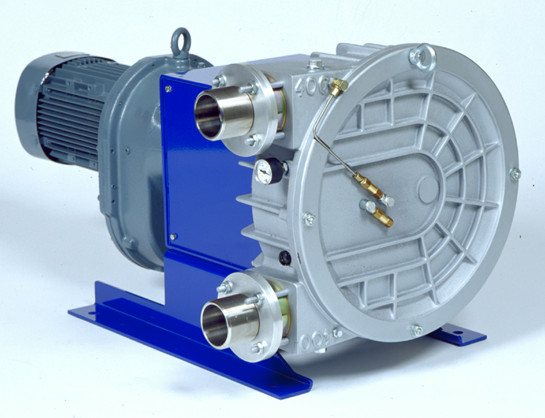

The newly developed Elro XP series of peristaltic pumps provide a high pumping capacity at low rotary speed. The large cross section of the peristaltic hose enables transfer of fluids with high solids content.
Series XP is equipped with the newly developed vacuum system integrated in the pump housing as standard. In connection with the specially manufactured thin-walled peristaltic hose these pumps are characterized by excellent suction properties and long hose lives.
Pump capacity Max
9,6 m3/h
Discharge pressure max
13 bar
Drive output min/max
1,5 - 5,5 kW
Weight without drive
53 kg
